Taw qhia

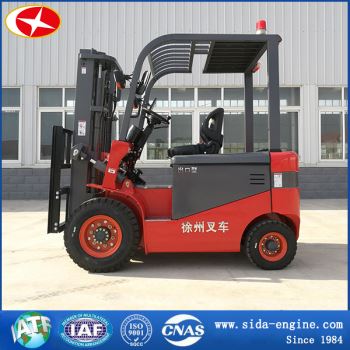

Cov hluav taws xob counterbalanced forklift yog tsuas yog siv rau kev ua haujlwm siab, hnyav hnyav tuav thiab stacking ntawm cov khoom hauv tsev thiab sab nraum zoov. Vim tias nws muaj pes tsawg emissions thaum siv, nws kuj tuaj yeem ua tau raws li qhov yuav tsum tau ua ntawm cov khoom noj, tshuaj thiab lwm yam kev lag luam nrog rau ib puag ncig siab.
Product Detail
Keeb kwm: Jiangsu, Suav teb
Ntawv pov thawj: ISO9001 thiab lwm yam.
Nqe: Negotiable
Lub sij hawm them nyiaj: T / T, L / C
Hnub xa khoom: Negotiable
Packing: export txheem pob
Kev Lag Luam: Middle East / Africa / Asia / South America / Europe / North America
Warranty: 1 xyoo lossis warranty tshwj xeeb cog lus
MOQ: 1 set
Technical Specifications
Qauv | Chav tsev | CPD 15 | CPD18 | CPD 20 | ||
Rated peev | kg | 1500 | 1800 | 2000 | ||
Chaw thau khoom | mm | 500 | 500 | 500 | ||
Max.lifting qhov siab | mm | 3000 | 3000 | 3000 | ||
Mast qaij lub kaum sab xis (rau pem hauv ntej / rov qab) | degree | 6/12 | 6/12 | 6/12 | ||
Lifting ceev (nrog / tsis muaj load) | mm/s | 400/380 | 400/380 | 440/310 | ||
Dawb nqa qhov siab | mm | 124 | 124 | 110 | ||
Max.travel ceev (nrog / tsis muaj load) | Km/h | 14/13 | 14/13 | 15/14 | ||
Hloov lub vojvoog | mm | 1865 | 1900 | 2166 | ||
Max. gradeability | % | 14 | 14 | 15 | ||
Tag nrho qhov ntev | Length (tsis muaj diav rawg) | mm | 2230 | 2230 | 2333 | |
Dav dav | mm | 1100 | 1100 | 1177 | ||
Mast txo qhov siab | mm | 2110 | 2110 | 2215.5 | ||
Mast Qhov siab | mm | 1995 | 1995 | 2080 | ||
Max. qhov siab thaum ua haujlwm | mm | 4010 | 4010 | 4210 | ||
Pem hauv ntej / nram qab overhang | mm | 427 | 427/367 | 463/355 | ||
Wheelbase | mm | 1340 | 1340 | 1515 | ||
Av clearance | mm | 120 | 120 | 150 | ||
Tread | Pem hauv ntej | mm | 890 | 890 | 980 | |
Qab | mm | 920 | 920 | 945 | ||
Roj teeb muaj peev xwm | (V / Ah) | 48/530 | 48/530 | 48/630 | ||
lub cev muaj zog | Taug kev lub cev muaj zog | KW | 8 | 8 | 11 | |
Roj twj tso kua mis lub cev muaj zog | KW | 10 | 10 | 12 | ||
Lub log | Pem hauv ntej | 6. 5-10-10PR | 6. 5-10-10PR | 7. 00-12TT-12PR | ||
Qab | 5. 00-8-10PR | 5. 00-8-10PR | 18 × 7-8TT | |||
Kev pabcuam hnyav | kg | 3190 | 3420 | 4220 | ||
Tus tswj | ZAPI ACE2 36-48V/450A | ZAPI ACE2 36-48V/450A | ZAPI ACE2 36-48V/490A | |||
ZAPI ACE2 36-48V/400A | ZAPI ACE2 36-48V/400A | ZAPI ACE2 36-48V/490A | ||||
Fork Length (Yeem sib phim) | m | 1070-1820, Kev cai | ||||
Lub rooj zaum (xaiv qhov sib txuam) | Cov tawv nqaij zoo li tawv lossis tawv tawv | |||||
Mast (xaiv qhov sib piv) | m | 3-5 | ||||
Tyre (yeem xaiv qhov sib piv) | Khoom, inflatable | |||||
Lub cev xim (xaiv qhov sib piv) | Xiav, Liab, Custom | |||||
Qhov zoo
1. Kev ua haujlwm yooj yim thiab hloov tau yooj yim, me me tig vojvoog;
2. Ib nrab lub rooj zaum tsim los txo cov neeg ua haujlwm qaug zog;
3. Siv AC lub cev muaj zog tswj ceev;
4. Nrog regenerative braking thiab hluav taws xob braking muaj nuj nqi;
5. Nrog roj teeb tshaj tawm kev tiv thaiv muaj nuj nqi;
6. Nrog tag nrho hydraulic zog steering thiab hluav taws xob steering (EPS) ob qauv;
7. Lub kauj fais fab (EPS) system muaj kev ua haujlwm ntawm kev txiav xoom lub kauj thaum pib; kev tsav tsheb ceev yuav cia li txo thaum tig;
8. Steering log lub kaum sab xis zaub muaj nuj nqi;
Cim npe nrov: hluav taws xob counterbalance forklift tsheb, Suav teb, manufacturers, lwm tus neeg, Hoobkas, nqe
