Taw qhia

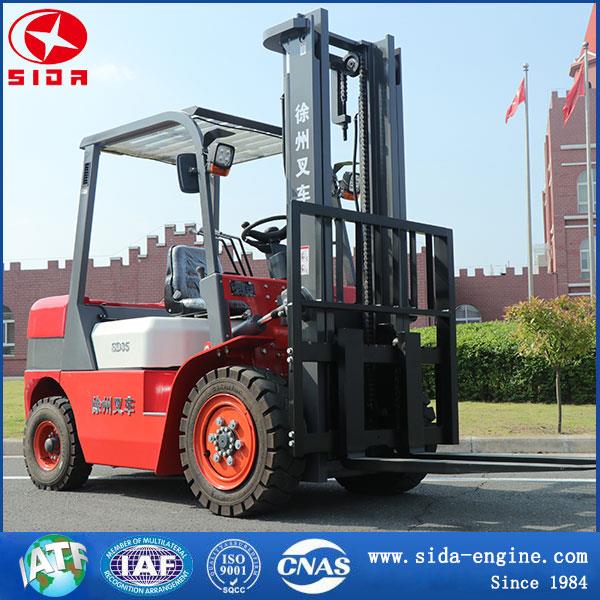

Tuam Tshoj lag luam wholesale siab zoo plaub log tsav hnyav luag hauj lwm diesel forklift .Tshiab thiab kub muag hydrostatic plaub log tsav articulated forklift kev muag khoom.
Product Detail
Keeb kwm: Jiangsu, Suav teb
Ntawv pov thawj: ISO9001 thiab lwm yam.
Nqe: Negotiable
Lub sij hawm them nyiaj: T / T, L / C
Hnub xa khoom: Negotiable
Packing: export txheem pob
Kev Lag Luam: Middle East / Africa / Asia / South America / Europe / North America
Warranty: 1 xyoo lossis warranty tshwj xeeb cog lus
MOQ: 1 set
Techincal Specifications
Qauv | Chav tsev | CPC 35 | CPC 50 | ||
Hom fais fab | Diesel | ||||
Rated peev | kg | 3500 | 5000 | ||
Chaw thau khoom | mm | 500 | 500 | ||
Max.lifting qhov siab | mm | 3000 | 3000 | ||
Dawb nqa qhov siab | mm | 100 | 170 | ||
Mast qaij lub kaum sab xis (rau pem hauv ntej / rov qab) | deg | 6/12 | 6/12 | ||
Pem hauv ntej overhang | mm | 475 | 555 | ||
Rov qab overhang | mm | 571 | 560 | ||
Tag nrho qhov ntev | Length (tsis muaj diav rawg) | mm | 2746 | 3215 | |
Dav dav | mm | 1248 | 1492 | ||
Mast txo qhov siab | mm | 2100 | 2340 | ||
Hloov lub vojvoog | mm | 2576 | 2950 | ||
nrog / tsis muaj load | Kev ceev ceev | Km/h | 18.5/22 | 18/19 | |
Nqa ceev | mm/sec | 470/410 | 470/450 | ||
Max. gradeability | % | 22 | 22 | ||
Max. Towing (nrog / tsis muaj load) | KN | 20/16 | 26 | ||
Kev pabcuam hnyav | kg | 4620 | 6770 | ||
Lub log | Pem hauv ntej | 28 × 9-15-14 PR | 300-15-20PR | ||
Qab | 6. 5-10-10PR | 7. 00-12-12PR | |||
Tread | Pem hauv ntej | mm | 1000 | 1200 | |
Qab | mm | 970 | 1190 | ||
Wheelbase | mm | 1700 | 2100 | ||
Av clearance | Mast | mm | 143 | 160 | |
Ncej | mm | 170 | 190 | ||
Fork Length (Yeem sib phim) | mm | 1070-1820, Kev cai | |||
Lub rooj zaum (xaiv qhov sib txuam) | Cov tawv nqaij zoo li tawv lossis tawv tawv | ||||
Mast (xaiv qhov sib piv) | m | 3/5 | |||
Tyre (yeem xaiv qhov sib piv) | Khoom, inflatable, ob chav kab log | ||||
Lub cev xim (xaiv qhov sib piv) | Xiav, Liab, Custom | ||||
Cav | Qauv | SDDW (Euro Ⅲ Emission Standard) | SD4BMU (Euro Ⅲ Emission Standard) | ||
Rated tso zis | kws | 36.8 | 60 | ||
Qhov zoo
1. Zoo nkauj tsos, compact qauv, me me vojvoog tig, lub teeb thiab saj zawg zog ua hauj lwm, muaj peev xwm ua hauj lwm nyob rau hauv ib tug nqaim qhov chaw, tag nrho cov hydraulic hwj chim kauj, kauj thiab lub rooj zaum yuav kho lub kaum sab xis thiab tus txheeb ze txoj hauj lwm ua ntej thiab tom qab, kom tau raws li tus neeg yuav tsum tau ntawm tus tsav tsheb.
2. Kev teeb tsa ntawm ntau yam joysticks raws li ergonomic xav tau, optimize tus tsim kom txo tau kev siv zog thiab ua kom ntau lawm efficiency.
3. Kev pom dav dav gantry, tus neeg tsav tsheb muaj kev pom dav, yog li lub forklift no yog qhov tsim nyog rau kev thauj khoom thauj, stacking thiab kev thauj mus los luv luv hauv cov tsiaj qus thiab sab nraum zoov.
Cim npe nrov: forklift log, Suav teb, manufacturers, lwm tus neeg, Hoobkas, nqe
